Home Products TER 400 ECT-F PLUS



Code TER0403

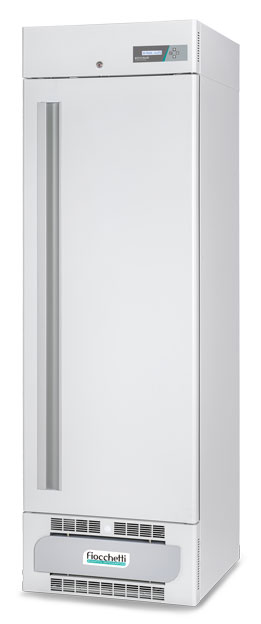

Medium size cooled incubator for any special application requiring a temperature range between +15 and +30°C,with solid or glass food, designed for laboratories, research centers and any scientific activity
+15 / +30°C Temperature range
347 lt (12.25 cu ft) Capacity
60 x 64,5 x 196 cm External dimensions (WxDxH)
ECT-F PLUS Electronic Controller

Laboratory cooled incubator, with display and alarms, even in the event of a power failure.

Cooled incubators series TER are available in different capacities and sizes, designed for research centers and laboratories.

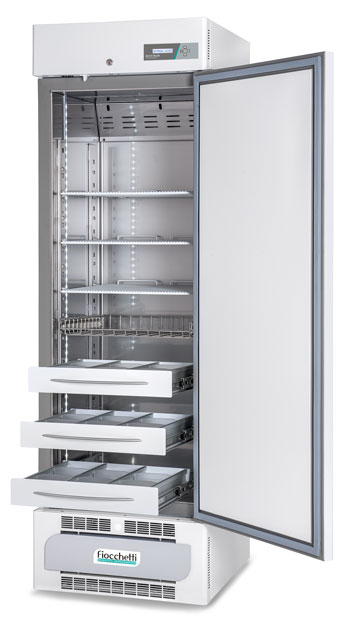

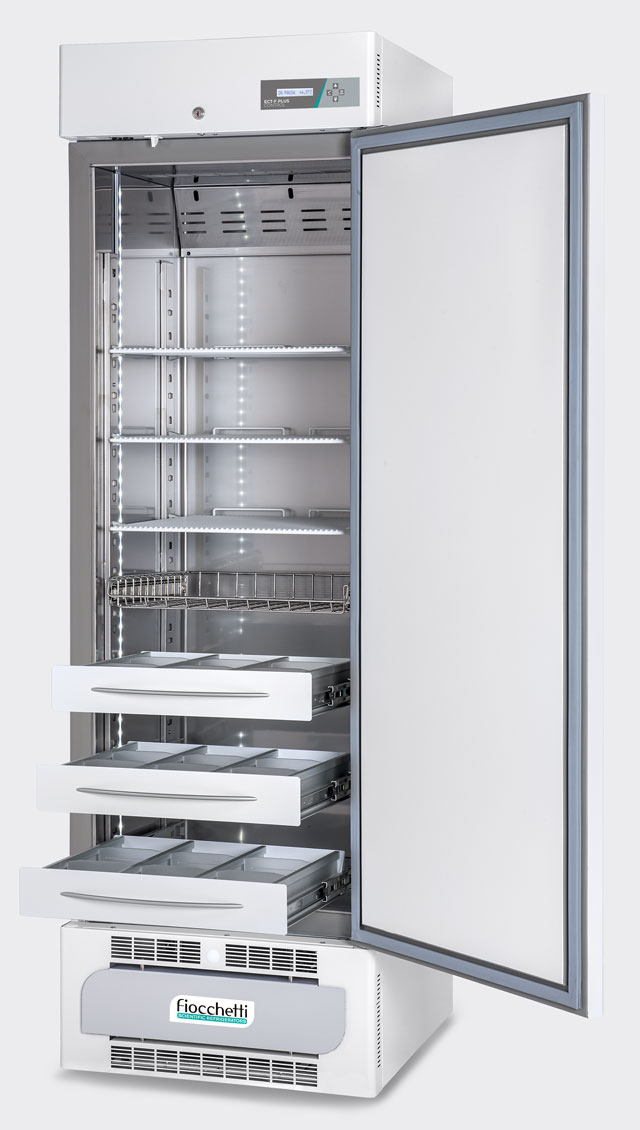

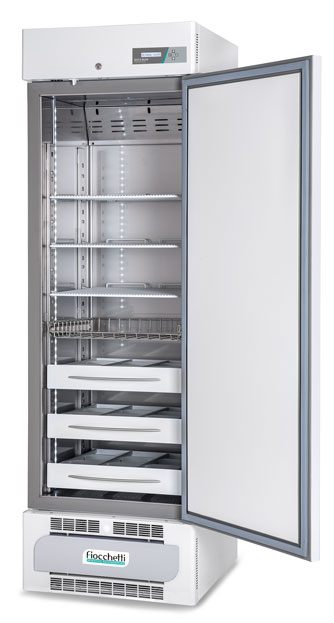

They are designed in particular for thermosensitive material at a stable and controlled temperature up to +30°C, and can be customized with shelves and drawers, and other accessories such as the humidity probe, internal socket and cable port.

The door can be solid or made of tempered glass according to safety norm CEI EN 60335-2-89, in antifog crystal, heat-insulating, triple layer for an improved thermal perfomance, with profiles in anodyzed aluminium. The all lenght ergonomic handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring ,door stop at 90°, the opening side is reversible

Download Resources


Inner dimensions: 50 x 48,5 x 140 cm

Nominal capacity: 400 l (14,12 cu ft)

Net capacity : 347 l (12,26 cu ft)

Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back / 50 mmm sides

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability

Interior lightning: Full LED, all lenght of inner chamber

Refrigeration type: Professional ventilated

Defrost type: Automatic, adaptive, with vaporization of condensate water



Temperature display and setting with:  Display resolution: 0,1°C  accuracy ± 0.3°C with backlit 16-character alphanumeric LCD display customizable in 5 languages, keyboard with 4 membrane keys   able to communicate with the user by providing immediate and precise information on the status of the equipment.

It also has a back-up battery for power failure alarm for up to 48 hours, a minimum/maximum temperature recording and potential free contact for remote alarms. Configurable and customizable display in four different reading modes
Keyboard: 4 simple membrane keys allow you to operate by following the intuitive instructions provided by the display. The user has the possibility to customize the password to protect switching on, switching off and changing the set-point and checking alarms even in the event of a power failure.

Alarms: The controller signals different types of temperature alarms, including high temperature alarm due to power failure, and records 12 events, in addition to the minimum and maximum temperature, which can be reset by the user . The dry contact on the board allows to remotely control the alerts.



Refrigerant gas type: R290
Energy consumption: 0,7 kWh/24h
Power absorption/current: kW 0,17 / Amp 1
Inrush current: Amp 3
Noise level: <45 dBA
Heat rejection EN 12900:  W 29
Shelves max nr.: 7
Wire shelves dimensions: cm 46x45
Drawers max nr.: 14
Inner dimensions of drawers with dividers (LxPxH) (each compartment): cm 11,8x40x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 39x40x7,5
Stainless steel wire drawer max nr.: 14
Inner dimensions of stainless steel wire drawer  (LxPxH): cm 43,5x40,5x6,2
