Home Products MEDIKA 2T 400 TOUCH



Code MET0402

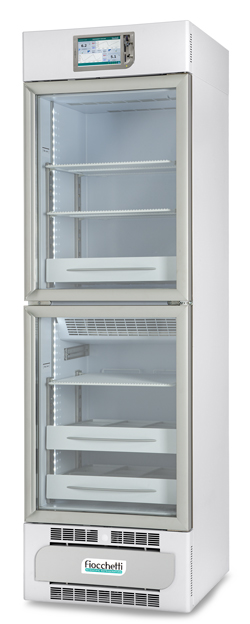

Our best seller medium size refrigerator, equipped with double cooling units, 400 l capacity (200+200 l), specific for drugs and vaccines, Featuring two glass doors, positive temperature setting in both compartments, data recording and developed for pharmacies.
+2/+15°C | +2/+15°C Temperature range
358 lt (12.64 cu ft) Capacity
60 x 66 x 202 cm External dimensions (WxDxH)
TOUCH Electronic Controller

Double positive temperature refrigerator, with two glass doors and double cooling unit, Touch screen display managing both chambers and data recording

The refrigerators for MEDIKA 2T® feature a double compartment and double cooling unit, specific for storing drugs and vaccines at different temperatures. The two glass doors and the adjustable compartments enhance product storage.

MEDIKA 2T® series have been notably design for being used in pharmacies, since a two positive temperature setting is often required for the storage of medicines at different temperature ranges. As such, these refrigerators comply with international standards and the official pharmacopoeia.

Doors are made of tempered glass according to safety norm CEI EN 60335-2-89, in antifog crystal, heat-insulating, triple layer for an improved thermal perfomance, with profiles in anodyzed aluminium. The all lenght ergonomic handle guarantees a safe and correct grip. The gasket is magnetic type sealing on all four sides, the automatic lock features a return spring, door stop at 90°, the opening side is reversible.

Download Resources


Inner dimensions: 50 x 48,5 x 68,5 / 50 x 49,5 x 73 cm

Nominal capacity: 200+200 lt (7,06+7,06 cu ft)

Net capacity : 170+160 lt (6,01 + 5,66 cu ft)

Insulation type: PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.

Insulation thickness: 70 mm back / 50 mmm sides

Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.  Nr 4 unidirectional rollers included to grant an easy handling and nr 2 front feet for a maximum stability

Interior lightning: Full LED, all lenght of inner chamber, with adjustable brightness

Refrigeration type: Professional ventilated

Defrost type: Automatic, adaptive, with vaporization of condensate water

Power consumption reduction with function Night & Day



Microprocessor controller with FULL TOUCH SCREEN 7" interface for displaying all the dynamic values of the refrigerator, with 0.1°C resolution and ±0.3°C accuracy.

As standard, it includes temperature and alarm recording and it simultaneously displays multi-trace real-time graph, current temperature and set-point (editable), alarm limits (editable), energy consumption and battery status(optional).

Door with 3 slots for: SD card with data history, USB port for system download and update, SIM card slot (for GSM module , as optional).

Further features: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection, anti-freeze and anti-overheating safety device, and dry contact for remote alarm signal

Additional accessories, which can also be installed separately, are: electronic lock, acoustic and visual alarm for power failure, DMLP TOUCH module for independent recording of temperatures, GSM and Wi-Fi modules, external terminal board, and possibility of add local and cloud monitoring systems .

Acoustic and visual alarms, silenceable, for any anomaly condition, with automatic recording.



Refrigerant gas type: R290
Energy consumption:  1,4 kWh/24h
Power absorption/current: kW 0,17+0,17 / Amp 1+1
Inrush current: Amp 3+3
Noise level: <50 dBA
Heat rejection EN 12900:  W 58
Shelves max nr.: 3+3
Wire shelves dimensions: cm 46x45
Drawers max nr.: 5+5
Inner dimensions of drawers with dividers (LxPxH) (each compartment): cm 11,8x40x7,5 (3)
Inner dimensios of drawers without dividers (LxPxH): cm 39x40x7,5
Stainless steel wire drawer max nr.: 5+5
Inner dimensions of stainless steel wire drawer  (LxPxH): cm 43,5x40,5x6,2
