Autopsy table B with down-draft system
Professional autopsy table with down-draft system
The range of autopsy tables is designed to meet a wide variety of body handling and post-mortem examination requirements. The available models can be customized with various accessories and are specifically intended for Forensic Medicine, Pathological Anatomy, and Clinical Research laboratories, as well as for morgues, mortuary services, and cemeteries.

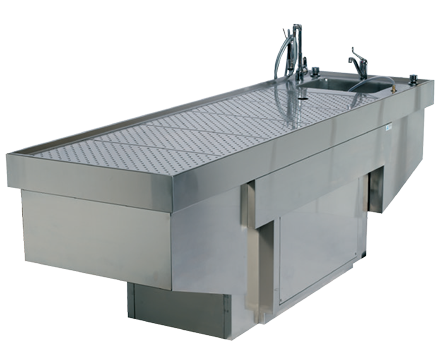

The Model B autopsy table with down draft system features a reinforced, contoured structure consisting of a worktop with a raised perimeter edge, sloped to contain fluids and designed without sharp corners. The surface is inclined to ensure efficient drainage of water and liquids towards the drain outlet. Equipped with five removable perforated panels on the upper surface, it provides stable body support while allowing liquid drainage and direct extraction of contaminated air through the tabletop.
- FEATURES
- TECHNICAL DATA
External Dimensions (WxDxH): 260x85x85 cm
Structure:
Made of AISI 304 stainless steel.
With a reinforced and shaped structure, it consists of a platform with perimeter edging for the containment of liquids, without sharp edges and suitably inclined to allow easy flow of water towards the drain.
The load-bearing element consists of a central structure made entirely of stainless steel and adequately reinforced for weight load, equipped with removable panels to allow access to the internal water and electrical connections and possibly to the suction unit and filtration systems (when provided inside the table).
All electrical connections and arrangements are suitably protected and have a minimum electrical insulation rating of IP 54.
For external and more exposed connections, the insulation degree is IP 65.
The central column is equipped with a EEC conform electric socket.
The top includes a series of 5 removable perforated panels supporting the body of the deceased, the outflow of washing water and the suction of exhausted air directly from the surface.
Included:
- Full-floor irrigation system using water ejectors placed on the side opposite the drain.
- Electric shredder-waste disposer.
- Hydro-aspirator.
Stainless-steel sink dimensions: 400 (W) x 250 (D) x 500 (H) mm
Max load: 250 kg
